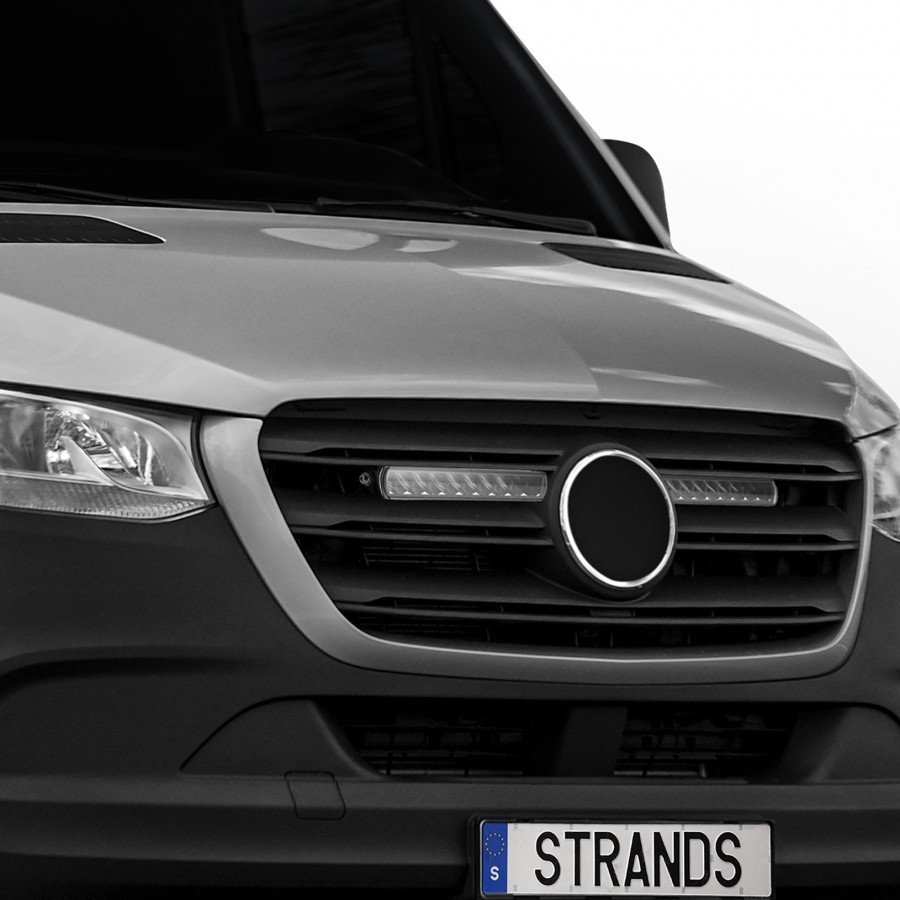

LED BAR KIT NUUK 2x 10, SUITABLE MERCEDES SPRINTER 2022-

A complete model-specific LED-bar kit for MERCEDES SPRINTER 2022-
Everything needed for a clean and secure installation is included in a single package. Including:
— LED bar Nuuk 2x 10
— Model-specific mounts
— Wiring kit/relay kit with DT connector
— DT-split (1 to 2 DT connectors)
— CanBus interface
— Mounting instructions
Nuuk 10 is a single row LED bar developed to showcase the best in design, brightness and technology. With a slim appearance and a black housing, the Nuuk 10 has a clean design and the lens that extends to the edges means that dirt does not stick and water rinse easily. The LED ramp gives you a fantastic light with a combination beam pattern, flood and spot and performs 1 Lux at 360 meters. Nuuk is E-Approved according to R112.

Type of LED — LG InNotek
PCS LED´s — 9
Voltage (V DC) — 12-30V DC
Theoretical effect (w) 12V — 80
Theoretical effect (w) 24V — 80
Consumption (w) 12V — 66
Consumption (w) 24V — 66
Theoretical lumen — 4100
Actual lumen — 3280
1 LUX @ m — 360
Kelvin — 6500
IP-class — 68/69K
Colour housing — Black
Colour lens — Clear
Beam pattern — Combobeam
Connection — DT
Cable length (mm) — 500
Material bracket — Stainless steel
Material housing/chassi — Aluminium
Material lens — Polycarbonate
Length (mm) — 2x272
Depth (mm) — 69
Height (mm) — 38,5
Height including bracket (mm) — 56
Operating temperature — -40°C - +60°C
E-approved — Yes
According to regulation — ECE R112
Reference number — 2x20
EMC — ECE R10
Canbus — Y
Radar — Y
